MEGN 301 Mechanical Integration and Design

Group project involving the creation of a portable power generator that can charge devices, display charging status, and has a flashlight for low-light conditions. My main contributions to this project were the power storage and delivery system.

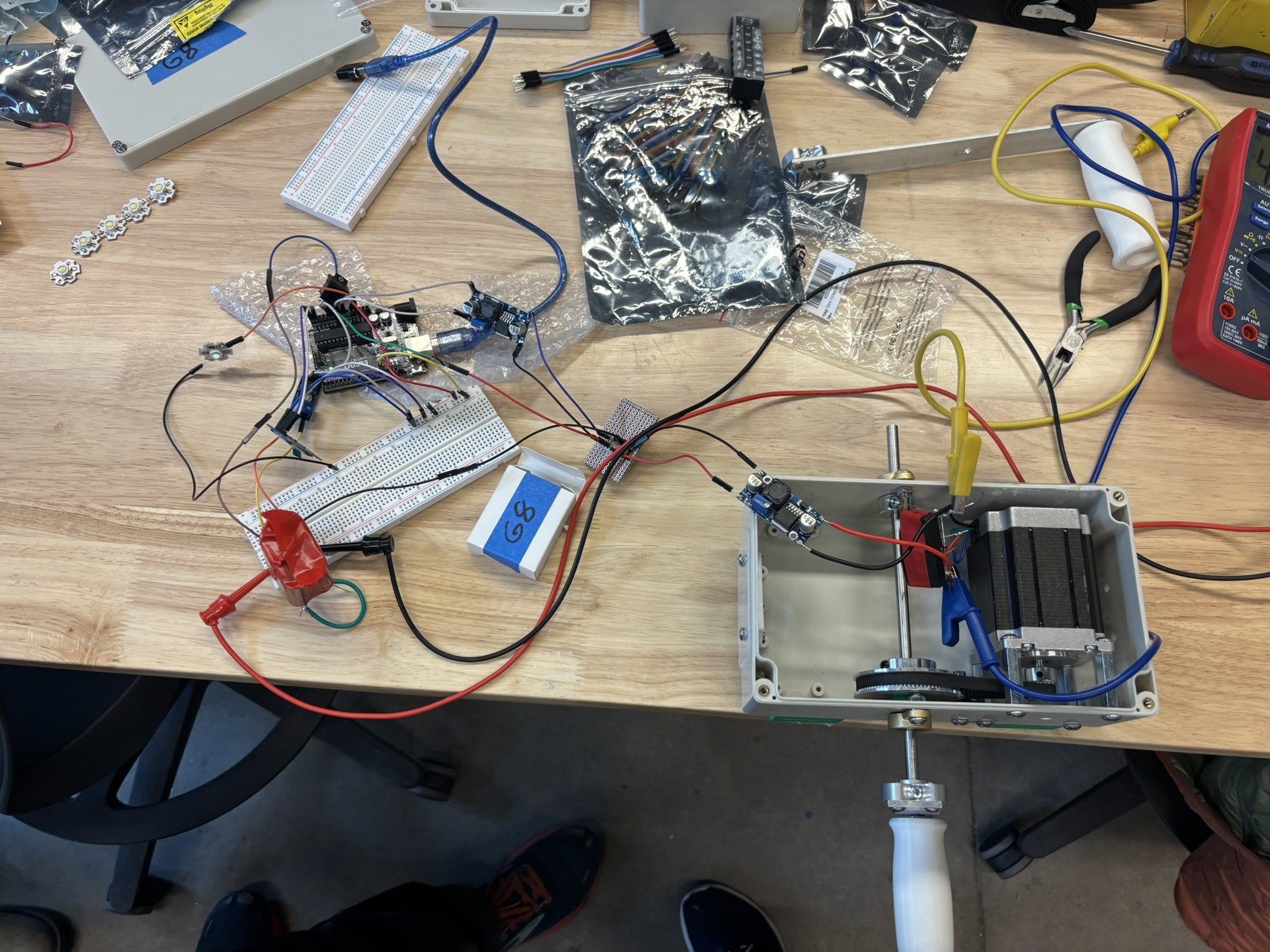

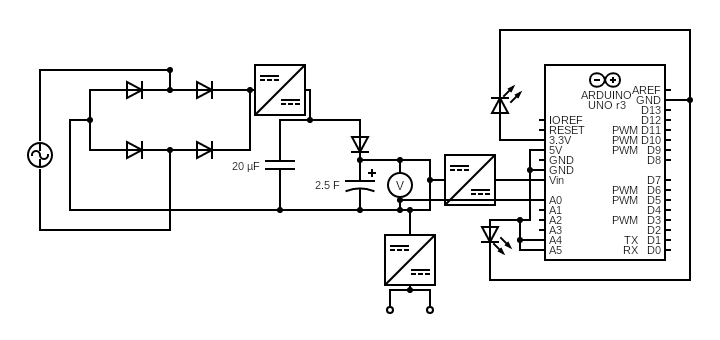

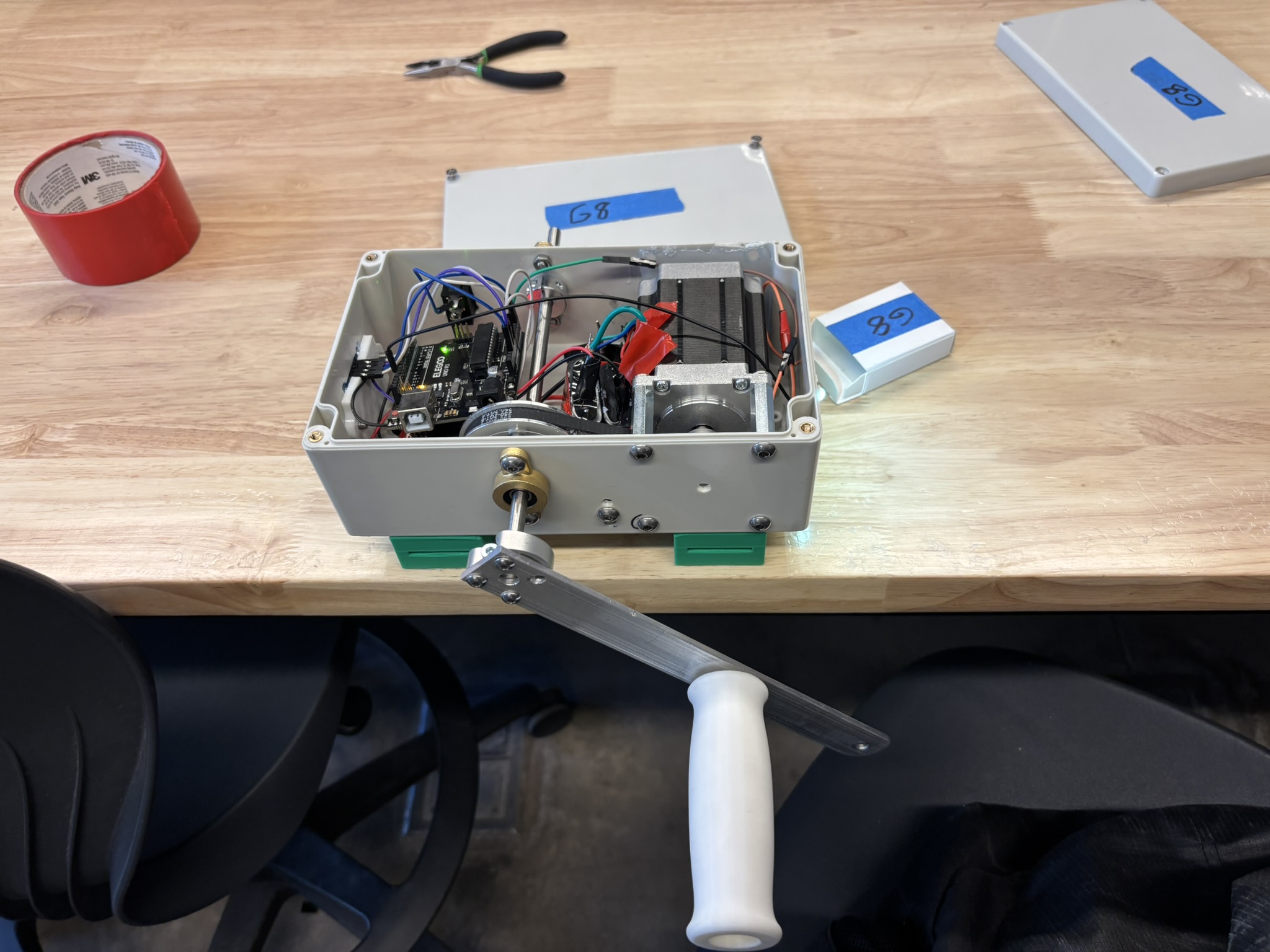

The generator contained a NEMA 23 step motor which charged a series of supercapacitors. The NEMA 23 was cranked using an axle connected to a pulley so that handles on both sides could be used. The power from the motor was converted to DC using a full bridge rectifier which fed into a buck converter. The supercapacitors then powered a 5v 1a USB-C port, an arduino and screen, and a 5W LED. Below is a circuit diagram for the system.

Simulations and calculations were performed on the system to ensure that the system would work properly. The process is documented in the final report below.

Final Report
